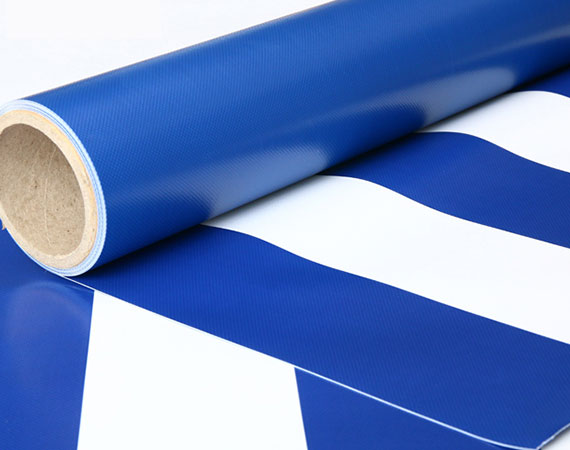

PVC awning tarpaulin is a PVC-coated tarpaulin with stripe printing. Weight from 400gsm to 1100gsm. The awning tarpaulin is widely used to make awning at doors, windows, and entryways. Our pvc coated tarpaulin is waterproof, fire retardant, and UV resistant.
| Item No: | Descriptions | Unit | Your Product Measurements: | ||
| 1 | Material of the Woven Fabric DIN60001 | Polyester | |||
| 2 | Weave DIN ISO 9354 | Plain Weave | |||
| 3 | Count of Yarn | Warp: | Denier | 1000 | |
| Weft: | Denier | 1000 | |||
| 4 | Setting/ Number of Threads | Warp: | Threads/cm | 20 | |
| DIN EN 1049 | Weft: | Threads/cm | 20 | ||
| 5 | Base Coat | PVC | |||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 175 | ||
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 650 | ||
| 8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 2800 | |
| Weft: | N/5cm | 2500 | |||
| 9 | Tear Resistance DIN 53363 | Warp: | N | 250 | |
| Weft: | N | 220 | |||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 100 | ||
| 11 | Adhesion (Welding) | Kg/5cm | 10 | ||
Heli chooses the best raw material to make our PVC laminated tarpaulin, the lifetime of our PVC awning tarpulin can be more than 5 years.
Heli uses Italian knife coating machines. The liquid PVC will be coated on the polyester fabric directly, even after thousands of folding, the PVC will not delaminate with the polyester fabric
We use imported pigment, and add UV resistant additive, so the color of our awning tarpaulin will not fade at sunlight.
Our maximum width for the awning tarpaulin is 5.1M. For stripe printing awning tarpaulin, our maximum width is 3.2M.
