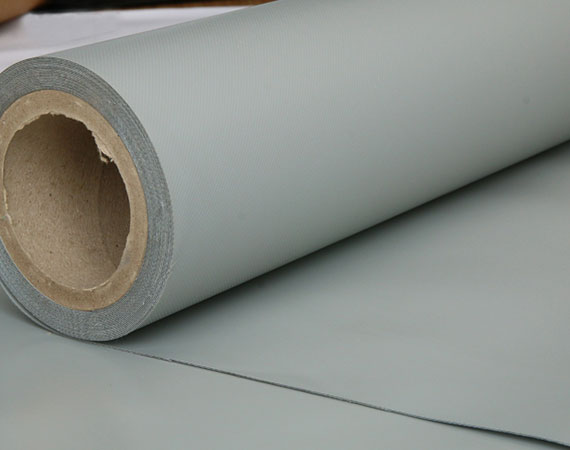

Airduct tarpaulin is a polyester fabric coated or laminate with PVC. The good airtigheness of the PVC tarpaulin can allow high speed air get through the duct without any leak. With special agent add to the PVC, the tarpaulin can be fire resistant and anti static.
| Item No: | Descriptions | Unit | Your Product Measurements: | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | Plain Weave | ||
| 3 | Count of Yarn | Warp: | Denier | 1000 |
| Weft: | Denier | 1000 | ||
| 4 | Setting/ Number of Threads | Warp: | Threads/cm | 20 |
| DIN EN 1049 | Weft: | Threads/cm | 20 | |
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 175 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 650 | |
| 8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 2800 |
| Weft: | N/5cm | 2500 | ||
| 9 | Tear Resistance DIN 53363 | Warp: | N | 250 |
| Weft: | N | 220 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 100 | |
| 11 | Adhesion (Welding) | Kg/5cm | 10 |
For the airduct tarpaulin, we can make it to be anti static at 10*8. The tarpaulin can be used to make big ventiatlion duct in mining industry.
Our tarpaulin for airduct is fire resistant, it is M1 and B1 and NFPA701 compliant.
We use high strength polyester fabric to make the tarpaulin, the tear strength can reach to 400N.
Yes, we can slit the airduct tarpaulin to be small width, such as 5CM or 10CM.
